AGC CNG - ISO 15500-17 SAE J517 100R8 标准

AGC CNG - ISO 15500-17 SAE J517 100R8 标准

INNER TUBE
Coextruded conductive polyamide and polyamide PA12
REINFORCEMENT
One or two braids of aramid fiber plus one braid of synthetic fiber
COVER
Polyurethane - red - pinpricked - white ink jet branding
APPLICATIONS
Refueling hose for mobile and stationary units used to refill natural gas vehicles (NGV) tanks - CNG Transfer lines
FEATURES
Static charge dissipating thanks to the conductive inner tube - Optimum bonding between tube braids and cover - Non metallic
design - Lightweight and flexible - Extra tough cover for abrasion
TEMPERATURE RANGE
-40 °C to +70 °C (-40 °F to +158 °F)
DESCRIPTION
High pressure hose suitable for CNG refueling applications featuring conductive inner tube to dissipate static electric build up.
Extra tough cover for abrasion water and micro biological resistance. Non metallic lightweight design for easy handling and
manipulation. Rugged construction to give kink - crush - twist and pull resistance. Twin lines available with vent hose. Other colors
available on request

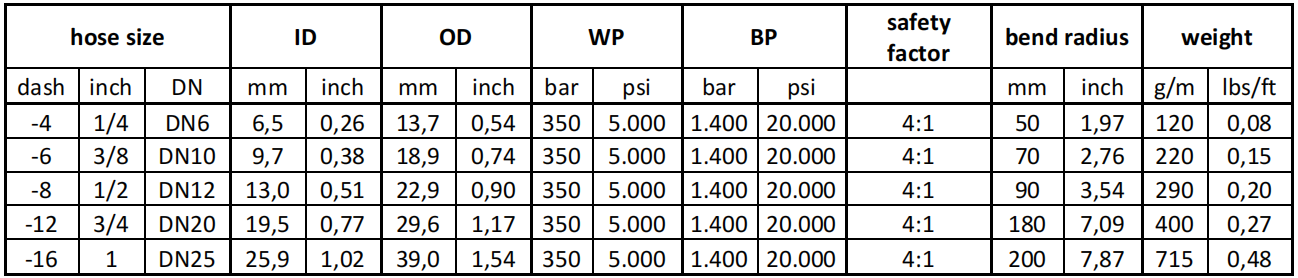

SPECIFICATIONS
Hose meets applicable requirements of ISO 15500-17, SAE J517 100R8


内胶层：导电聚酰胺和聚酰胺PA12
加强层：一层或两层芳纶纤维编织层加一层合成纤维编织层
外胶层：聚氨酯 - 红色 - 针孔透气处理 - 白色喷墨标识
应用领域：用于移动式和固定式天然气车辆（NGV）加注设备的加注软管 - CNG输送管线
温度范围：-40°C至+70°C（-40°F至+158°F）
产品描述：
高压软管适用于CNG加注应用，配备导电内层管以消散静电积聚。超强耐磨外层具有防水和抗微生物特性。非金属轻量化设计便于操作和手法治疗。坚固结构提供抗扭结、抗压扁、抗扭转和抗拉伸性能。可提供带排气管的双管路型号。其他颜色可根据要求定
