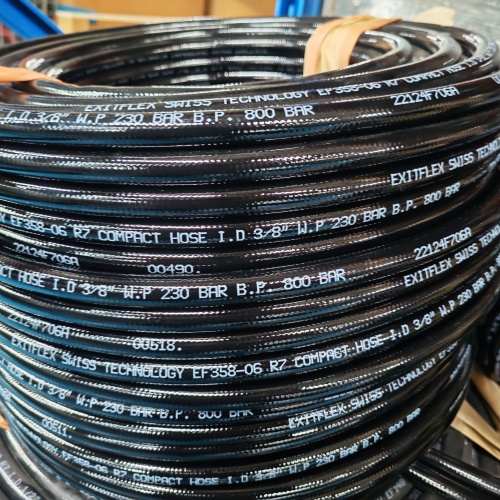

EF358 - SAE 100 R7 紧凑型

EF358 - SAE 100 R7 紧凑型

Construction
Core：Polyamide (Composite tube)
Reinforcement：One or more Braids of Synthetic Fiber
Cover：Polyurethane, Black Colour, Pin pricked
Application：Medium Pressure Hydraulic Lines 70 to 210 bar. Suitable for hydraulic application with increased resistance to abrasion for usewith petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery,Earthmoving,Articulating & Telescopic booms and Material handling equipments
Temperature Range: Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
Note: Available Twin & Multi lines with different Hose combination and size. Also special colours available on request


内层：热塑性弹性体
加强层：单层或多层编织纤维
外层：黑色聚氨酯，表皮刺孔
应用领域：中压液压管路（压力范围70至210巴）。适用于液压系统中与石油基、合成油或水基介质配合使用的液压应用，具有优异的耐磨性能；适用于农业机械、土方作业设备、铰接式及伸缩臂式作业装置以及物料搬运设备
温度范围：-40℃ ～ 100℃（介质是空气和水时，温度不超过70℃）
