6J511 EN 燃油吸排管 10 bar (150 psi) - 一般工况 EN 13765 Type 2

6J511 EN 燃油吸排管 10 bar (150 psi) - 一般工况 EN 13765 Type 2

Tube: polypropylene film.
Inner wire: galvanised steel wire.
Cover: grey PVC coated fabric with helicoidal blue stripe-white letters.
Outer wire: galvanised steel wire.

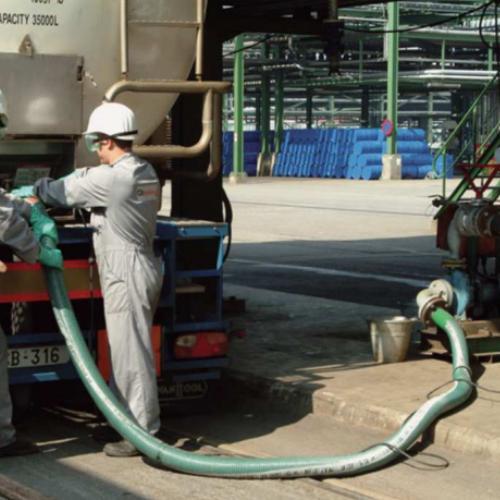

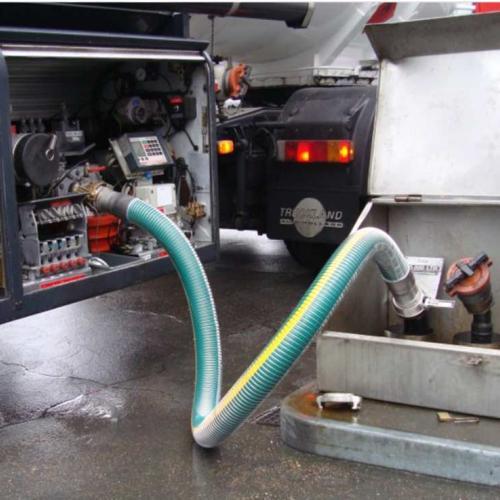

Application: fuel and oil suction and delivery.Specially designed for tank truck applications.
Temperature: -30 °C +80 °C (-22 °F +176 °F)
Electrical conductivity: ensured by the two wires in contact with fittings.
Electrical resistance: ≤ 2,5 Ω/m up to DN 50 mm (2")
≤ 1,0 Ω/m over DN 50 mm (2")


内部钢丝: 镀锌钢丝线
内胶层: 聚丙烯薄膜
外胶层: 带有纵向黄条纹的灰色 PVC 镀层织物
外部钢丝: 镀锌钢丝
应用: 燃油吸排，特为罐式车设计
安全系数: 4:1
温度范围: -30 °C +80 °C (-22 °F +176 °F)
导电性: 通过与两端接头接触的两根钢丝实现
电阻: ≤ 2.5 Ohm/mt up to DN 50mm (2’’); ≤ 1 Ohm/mt over DN 50mm (2’’)
