340AH 蒸气管 18 bar (270 psi) 钢丝编织

340AH 蒸气管 18 bar (270 psi) 钢丝编织

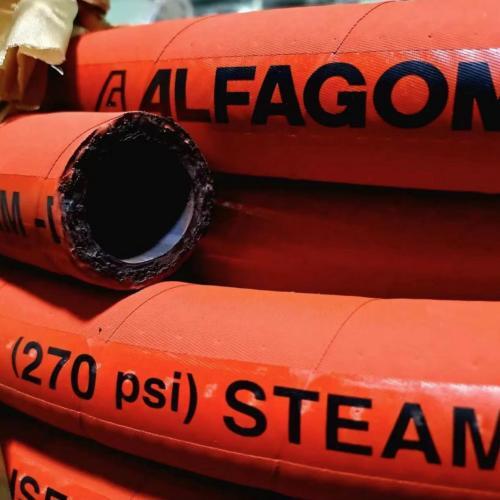

Tube: black conductive EPDM.
Reinforcement: one or two high tensile steel wire braids.
Cover: red EPDM - heat, abrasion and ozone resistant - pin pricked.
Application: saturated and superheated steam.
Constant operation: -40°C +210°C (-40°F +410°F)
intermittent to 232°C (450°F)


内胶层:黑色导电EPDM
加强层:两层高强度钢丝编织
外胶层:红色EPDM -耐热、耐磨损、耐臭氧-刺孔工艺
应用:饱和或过热水蒸气
安全系数: 10:1
温度范围: -40°C +210°C (-40°F +410°F)
瞬间可承受最高温度232°C (450°F)

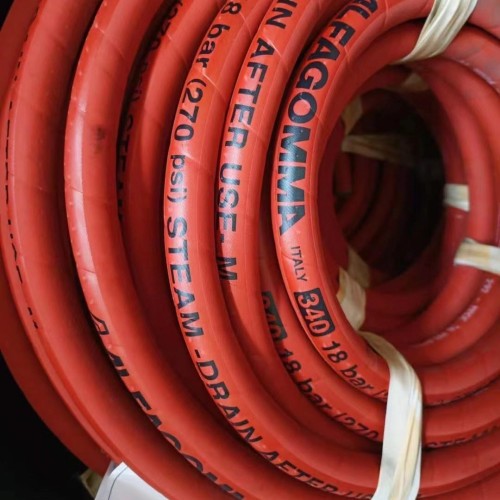

品牌字样：ALFAGOMMA -ITALY- T-340AH 18 BAR (270 PSI) STEAM - DRAIN AFTER USE- BS 5342/A/2-NFT47263 CI T3 DIN2825 q/yy

下载:

PDF样本资料IOS 4023 标准测试报告
