ROV OPERATION - 快速响应恒压树脂管 350bar (5000 psi)

ROV OPERATION - 快速响应恒压树脂管 350bar (5000 psi)

Tube: oil and biodegradable hydraulic fluid resistant polyamide 11 methanol washed.
Reinforcement: high tensile aramid reinforcement.
Cover: oil, water and ozone resistant polyurethane, non-pin  pricked.

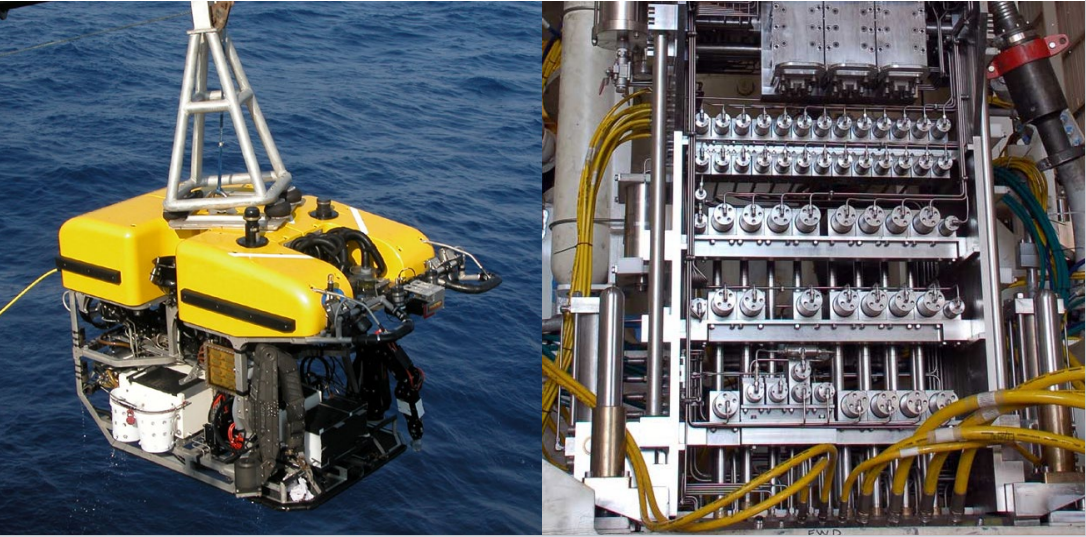

Application: marine and off-shore equipment, ROVs (remotely operated vehicles), BOP valves.Suitable for off-shore seismic monitoring operations.Manufactured according to API 17E / ISO 13628-5.
Temperature: -40 °C to +100 °C (-40 °F to +212 °F)
air and water max T = +70 °C (+160 °F)
Length: random   DH SCAN crimp short code: OFSM5K


内胶层:耐生物降解液压油-PA11
加强层:高强度芳纶增强层
外胶层:耐油、耐水、耐臭氧的聚氨酯，无针刺
应用范围:船用和海工设备，水下机器人，防喷器阀门。适用于近海地震监测作业。根据API 17E / ISO 13628-5 标准生产
温度:-40°C至+100°C(-40°F至+212°F)
空气和水最大T = +70°C(+160°F)

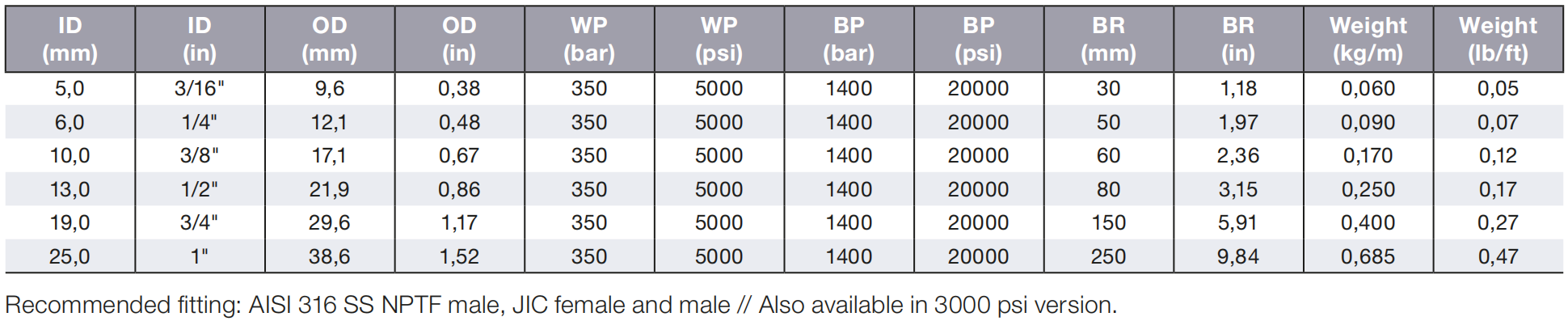

推荐接头：AISI 316 SS; NPTF 公接头; JIC公接头和母接头

下载:

PDF样本资料
